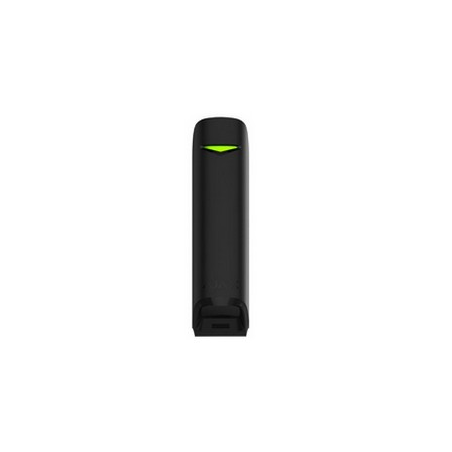

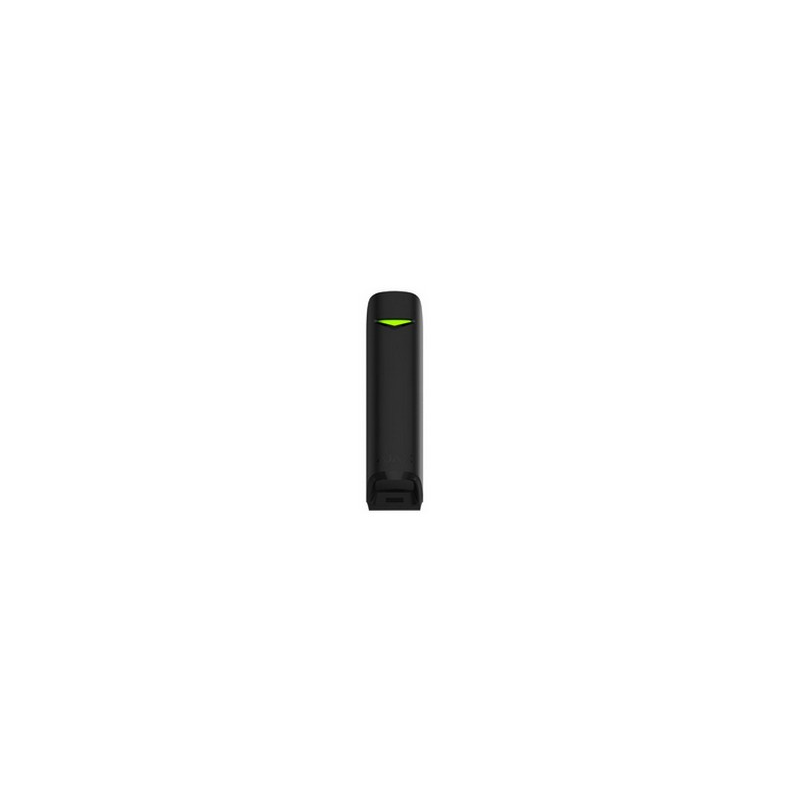

Ajax MotionProtect Curtain alarm black curtain detector
Ajax MotionCurtain black wireless curtain detector for Hub Ajax alarm control panel
Features MotionProtect Curtain:
-
Wireless Radio Interconnect Photoelectric Safety Detector
-
Motion detection distance: 6 to 15 meters (depending on device settings)
-
Installation method: indoors
-
Compatibility Only works with Hub , Hub Plus , Hub 2 and ReX
-
Sensor element: two PIR sensors
-
Signal reception delay: 0.15s
-
Detection angles: Horizontal — 6° Vertical — 90°
-
Sensitivity: Adjustable, 3 levels
-
Recommended installation height: 2.4 m
-
Power supply: Battery: CR123A
-
Supply voltage: 3V
-
Battery life: up to 3 years
-
Jeweler wireless technology
-
Communication range with the central unit – up to 1700 m in open space
-
Two-way communication between devices
-
Operating frequencies – 868.0 – 868.6 MHz
-
Self-adjusting RF output power – up to 20 mW
-
Data packet encryption based on the AES algorithm
-
Detector polling period – 12 – 300 s+
-
Protection index: IP54
-
Dimensions: 134 × 44 × 34mm
-
Weight: 118g
- Black color
-
Complete set
-
MotionProtect Curtain motion detector
-
SmartBracket mounting panel
-
CR123A batteries (pre-installed)
-
mounting bracket
-
Installation kit
-
Manual
-
