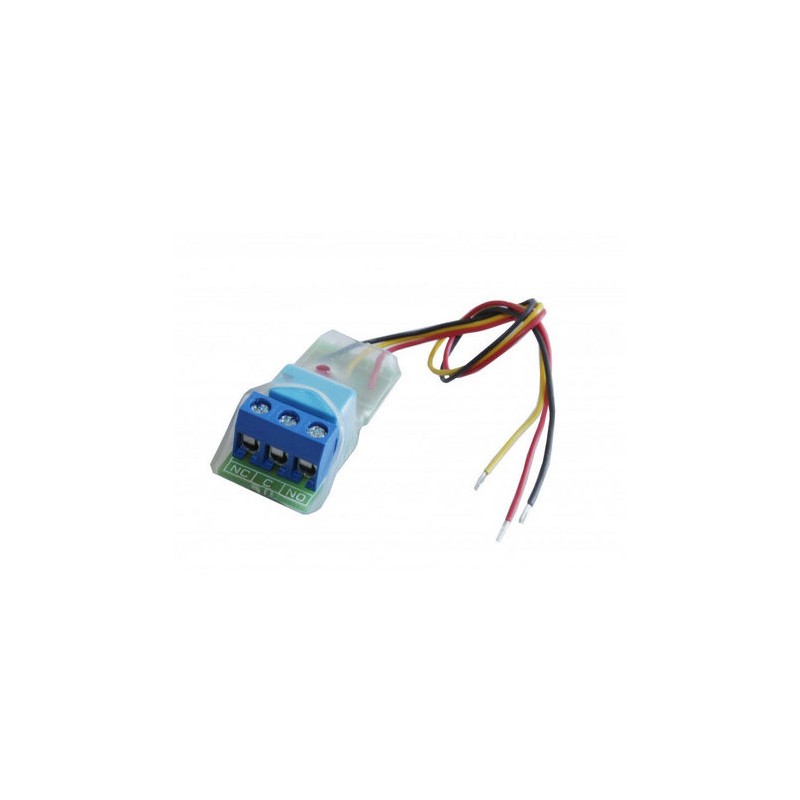

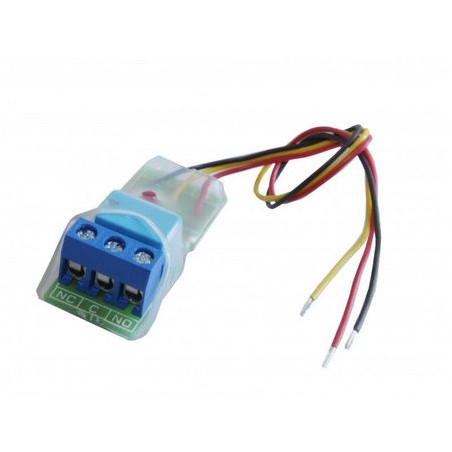

Alarmtech RC 1 - 9~30V Relay Board with SPDT Function (NC/NA)
search
  • Alarmtech RC 1 - 9~30V Relay Board with SPDT Function (NC/NA)

Alarmtech RC 1 - 9~30V Relay Board with SPDT Function (NC/NA)

€22.30
VAT included

Alarmtech RC 1 - 9~30V Relay Board with SPDT Function (NC/NA)

Compact universal relay board with SPDT (NC/NA), LED indicator, adhesive attachment and 9 to 30V DC operation.

Quantity

  Safety guarantees

Our e-commerce site is secured by SSL

  Delivery policy

Free delivery from €149 to Relay points with Mondial Relay or DPD

  Returns policy

You have 14 days to withdraw

Alarmtech RC 1 - 9~30V Relay Board with SPDT Function (NC/NA)

This extremely compact universal relay board is ideal for various applications thanks to its convenient design and advanced features. It is ideal for systems that require low control current and simplified installation.

Key features:

  • SPDT Relay (NC/NA): Supports both Normally Closed (NC) and Normally Open (NA) configurations.
  • Transistor control : Requires a low current of 1 mA for activation.
  • LED indicator : visualization of relay activation in real time.
  • Easy attachment : Adhesive tape on the back for quick and convenient assembly.
  • Secure connection : terminals with cable protection and spring connection.
  • Input voltage : works with a 9 to 30V DC power supply.
  • Power consumption :
    • 16 mA at 12V DC
    • 20 mA at 28V DC
  • Contact Information : 30V DC / 1A / 28VA.
  • Operating temperature : suitable for extreme conditions, from -40°C to +70°C.
  • Ultra-compact dimensions : 37 x 16 x 13 mm.
RC1
10 Items

Specific References

Download

Manuel

Download (590.28KB)
