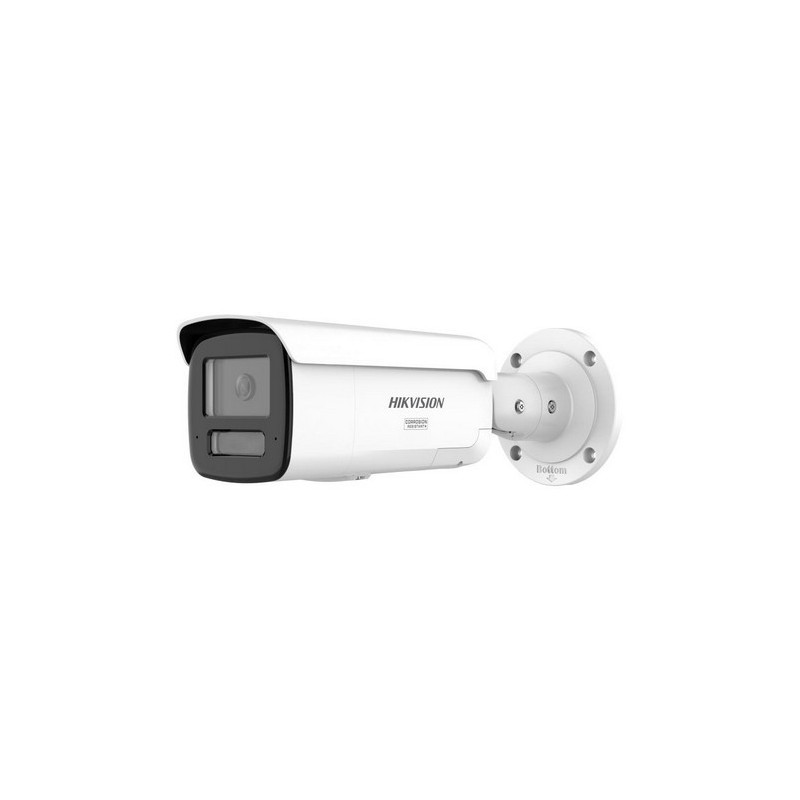

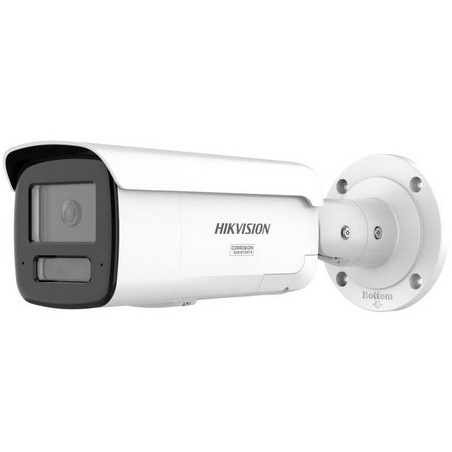

Hikvision DS-2CD2T47G3-LIS2UY/SL - Colorvu AcuSense 3.0 4 Megapixel IP Camera

The Hikvision DS-2CD2T47G3-LIS2UY/SL camera is a bullet video surveillance camera model from Hikvision's DS-2CD2T series.

The Hikvision DS-2CD2T47G3-LIS2UY/SL camera is ideal for outdoor use in a variety of environments, such as:

• Building entrances, parking areas.

• Surveillance of external perimeters (warehouses, factories).

• Shops, retail stores, public buildings thanks to its people counting capabilities.

The Hikvision camera is designed to deliver high-quality performance outdoors, with high resolution and advanced safety features.

This model is a solid choice for professional video surveillance, offering a perfect combination of high image quality, video intelligence and robustness in the face of harsh outdoor conditions.

Here are the technical data and main features of the Hikvision DS-2CD2T47G3-LIS2UY/SL :

1. Resolution and image:

• Resolution : 4 MP (Megapixels), allowing you to obtain high-definition videos (1080p) with clear and sharp details.

• Video Compression : Supports H.265+ video compression to reduce the size of video files while maintaining high image quality.

• Sensor : CMOS, allowing you to capture detailed images with better light sensitivity.

2. Lens and angle of view:

• Motorized Lens : 2.8mm to 12mm (varifocal), allowing for precise adjustment of the field of view for coverage tailored to different surveillance areas.

• Angle of view :

  • Horizontal : Approximately 90° to 30°, depending on the focal length chosen, allowing you to cover a wide area or focus on specific details.

3. Lighting Technologies and Night Vision:

• ColorVu Technology : Provides color images even in low-light conditions, starting at 0.002 lux, allowing colorful details to be viewed even at night.

• IR (Infrared): IR range up to 30 meters for clear visibility even in complete darkness, thanks to integrated infrared LEDs.

4. Strength and durability:

• IP67 rating : Waterproof and dustproof, suitable for outdoor use, able to withstand weathering.

• IK10 resistance rating : Protection against vandalism, which makes the camera robust to physical shocks.

5. Intelligent Detection and Advanced Features:

• Face Detection : Detects faces in monitored areas, useful for advanced security applications.

• Intrusion Detection : Alerts when a specified area is penetrated.

• Line Crossing Detection : Alerts if an object or person crosses a virtual line set on the image.

• People counting : Ideal for commercial applications or in public places, allowing the number of people in a given area to be counted.

6. Power and connectivity:

• PoE (Power over Ethernet): Power over a single Ethernet cable, simplifying installation by transmitting data and power at the same time.

• Network connectivity : The camera operates via an IP network, allowing remote access to video and management through an NVR (Network Video Recorder) or via the Hik-Connect app on mobile.

7. Audio:

• Audio Input and Output : This camera allows two-way audio transmission through a built-in microphone and speaker, allowing for remote communication.

8. Operating temperature:

• Temperature range :

9. Dimensions and Weight:

• Dimensions : Approx. Ø 122 mm x 105 mm (diameter x height).

• Weight : Approximately 0.65 kg.

Summary of key features:

• 4 MP high definition with crisp and clear vision.

• ColorVu technology for full-color images even in the dark.

• IR night vision up to 30 meters for clear videos in low-light conditions.

• Intelligent detection (line crossing, intrusion, face detection, people counting).

• PoE power and IP network connection for easy remote management.

• Weatherproof (IP67) and vandal-proof (IK10).

Characteristics Hikvision DS-2CD2T47G3-LIS2UY/SL - Colorvu AcuSense 3.0 4 Megapixel IP Camera:

• Fixed Lens: 2.8mm

• 1/1.8'' CMOS sensor

• Maximum resolution: 4MP

• Infrared distance: 60 meters

• Image enhancement features: ColorVu, WDR (130dB), BLC, 3D DNR, HLC

• DC12V power supply, 1.41A, max. 17W, PoE (802.3af), max. 18W

• IP67

• Horizontal angle of view FOV: 111.1°; vertical FOV: 57.6°; Diagonal FOV: 138.5°

• 2688x1520@25fps

• Video compression: H.265/ H.265plus/H.264/H.264plus

• Smart Features: Intrusion Detection, Line Crossing, Scene Change, Motion Detection

• Minimum illumination 0.0001Lux@F1.0 (color), 0 Lux (black and white)

• Built-in dual microphones for high-quality, real-time audio security

• Smart Hybrid Light: Integrates IR and White Lights, 3 Additional Lighting Modes

• Active strobe light and audible alarm to warn intruders

• HikAI-ISP for excellent noise reduction effect

• Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360°

• I/O Alarm 2/2, Audio I/O 1/1

• Shutter speed: 1s to 1/100,000s

• 1 x 10M/100M RJ45 port

• Micro SD/SDHC/SDXC card slot, max. 512GB

• Operating temperature: -30°C to 60°C

• Dimensions: 28.6cm x 9.3cm x 9.1cm

• Weight: 1250g
