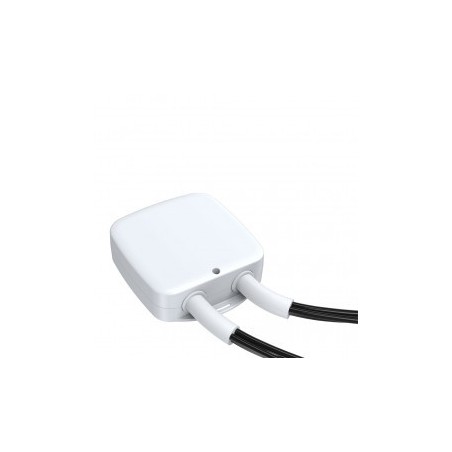

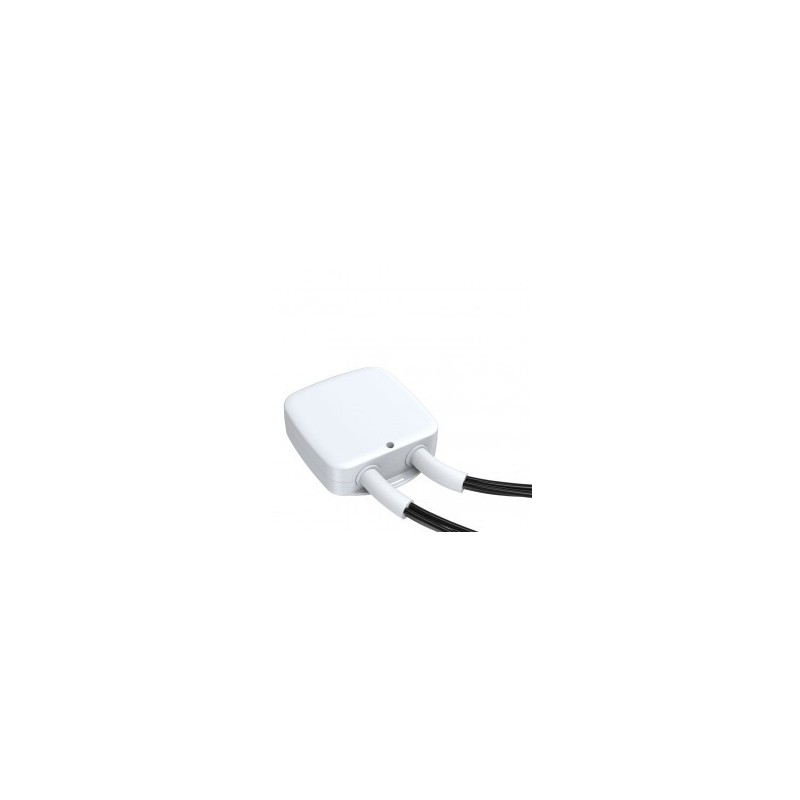

AEON LABS switch Module high-load 40A Z-Wave Plus (GEN5)
search
  • AEON LABS switch Module high-load 40A Z-Wave Plus (GEN5)

AEON LABS switch Module high-load 40A Z-Wave Plus (GEN5)

€85.80
VAT included

Commutatuer Z-WAVE high-power.

Allows you to control a power 9600 Watts.

Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

The Heavy Duty smart switch AEOTEC allows the control of the switching device or circuit up to 9600 watts of power.

The Heavy Duty smart switch AEOTEC allows for the monitoring of the energy consumption.

Features:

  • Order a device or group of device from high power distance

  • Function ON/OFF

  • Measurement of the instantaneous fuel consumption, and cumulative

  • Works with devices that require a power of 40 amps maximum

  • Is part of the range Gen5 from Aeon Labs

  • Safety radio communication via AES-128 encryption

  • Integrates the chip Z-Wave 500 series

  • Communication 250% faster compared to devices Z-Wave standard

  • Supports frames exploration Z-Wave

  • Supports Beaming

  • Updates to the firmware Over The Air (OTA)

  • Repeater messages to Z-Wave

  • Optimization of the antenna, range 150 meters

  • Ease of use and installation

  • Type of module : Receiver Z-Wave

  • Power supply : 240VAC, 50/60Hz

  • Consumption : 1W

  • Max load : 9600W / 40A

  • Frequency : 868,42 Mhz

  • Transmission Distance : 200m in free field

  • IP Protection : IP43

  • Dimensions: 150mm x 118mm x 35mm

  • Weight : 350g

  • Operating temperature : 5-40°C

  • Operating humidity : 80%

  • Certifications: FCC, UL, CE, ROHS




ZW078-C
1 Item

Data sheet

Protocol
Z-WAVE
Functions
Actuator

Specific References

EAN13
1220000012547
