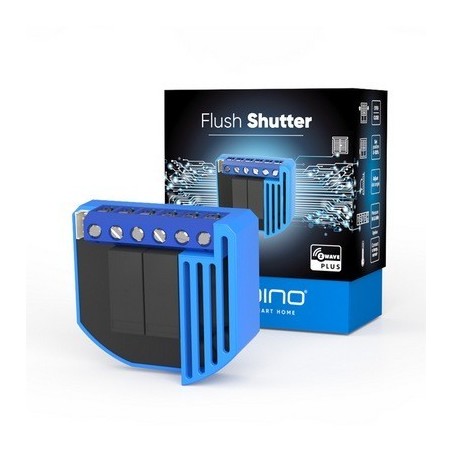

Qubino ZMNHCD1 - Micro-moduleQubino for shutter with conso-meter Z-wave More ZMNHCD1

ZMNHCD1 Qubino Module for rolling shutter with conso-meter Z-Wave More ZMNHCD1

€48.99

VAT included

Module Z-wave More Qubino ZMNHCD1 for rolling shutters.

Module with energy meter.

Quantity

Out-of-Stock

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Description
Product Details

Module home automation Z-wave More Qubino ZMNHCD1 to order roller shutters,garage door,automatic gate or any other device with a motor.

The module Qubino ZMNHCD1 allows the measurement of instantaneous power in watts and total power consumption in Kilo Watts per hour.

The module Qubino ZMNHCD1 has an input for temperature probe to control a heating system,air-conditioning or ventilation.

Features:

Order your blinds or shutters remotely
Installs behind existing switch
According to MONTE/DESCENT and positioning
Integrates the chip Z-wave 500 series (Z-wave+)
Communication 250% faster compared to devices Z-wwave standard
The smallest module for rolling shutter in the world
Case design specially designed for ease of installation (ease of mounting of the cables), and tested by electricians professionals
Very low power consumption with less than 0.4 W
Operating temperature -10 to 40°C
Connector for temperature sensor analog
Measurement of power consumption

Power supply : 110 - 230 VAC ±10% 50/60Hz, 24-30VDC
Power consumption : 0.4 W
Rated current of AC output (resistive load) : 2 X 4A / 230VAC
Rated current of DC output (resistive load) : 2 X 4A / 30VDC
Power of the circuit on the AC output (resistive load) : 2 X 920W (230VAC)
Power circuit DC output (resistive load) : 2 X 96W (24VDC)
Accuracy of the measurement of energy : P=0-200W, +/-2W, P>200W, +/-3%
Frequency of radio emission : 868.42 MHz, Z-wave
Range : up to 30 m indoors (depending on surrounding materials)
Measuring range temperature sensor digital (sensor sold separately) : -50 ~ 125°C
Operating temperature : -10 ~ 40°C
Space required for installation : Ø ≥ 60mm
Dimensions (W x H x d) : 41,8 x 36,8 x 16,9 mm
Weight : 25g
Certifications : CE, RoHs

Compatibility:

Compatible eedomus Yes
Compatible With Vera 3/Lite Yes
Compatible with Fibaro HC Lite Partially
Compatible with Fibaro HC2 Partially
Compatible with ZIPABOX Partially
Compatible Controller Lite Yes
Compatible Controller Pro Yes
Tax Code 85364900

Reference ZMNHCD1

Data sheet

Protocol: Z-WAVE
Functions: Automation
Type: Wireless

Specific References

EAN13: 3830062070126
