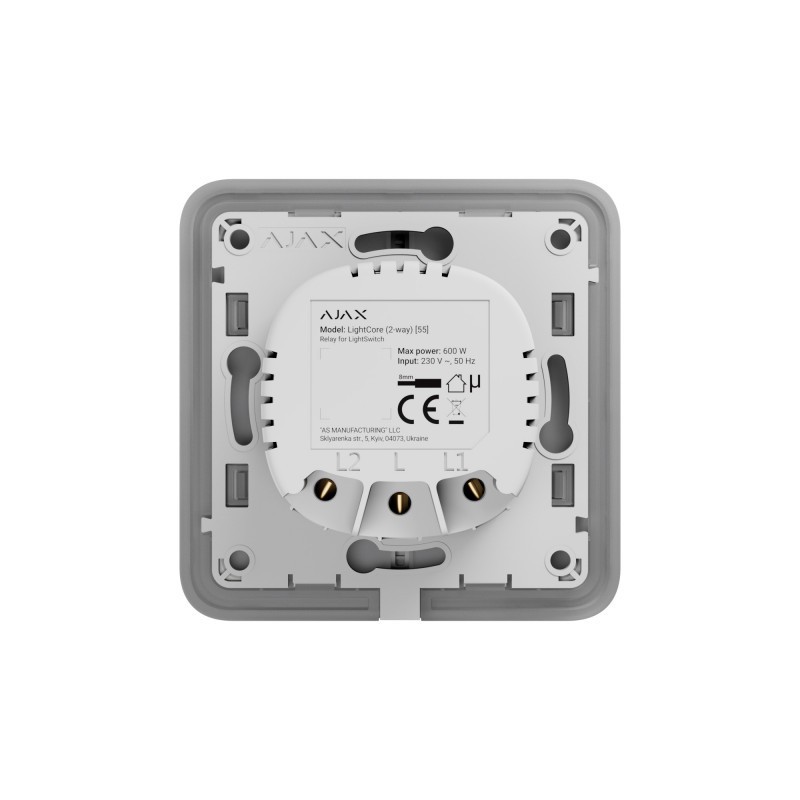

Ajax LIGHTCORE2WAY - LightSwitch (2-way) Single Switch Mechanism

Ajax AJALIGHTCORE2WAY - LightSwitch (2-way) Single Switch Mechanism

Ajax's LightSwitch 2-way relay mechanism allows you to control a back-and-forth lighting circuit with a smart touch switch and touchless activation. Easy to install, it does not require a neutral cable and can be configured remotely via the Ajax app.

Strengths

• Smart, touchless control : Touch or touchless activation, with discreet backlight for nighttime use.

• Simplified installation : Works without a neutral cable, making it easy to be compatible with various electrical installations.

• Advanced remote control : Management and parameterization via the Ajax app, compatible with up to 4 switches on a single frame.

Ajax's LightSwitch 2-way relay mechanism is designed to modernize and simplify the control of reciprocating luminaires. Thanks to its large touch panel and touchless mode, it allows smooth and intuitive activation, even in the dark, thanks to its discreet backlight.

Its installation is quick and hassle-free, since it does not require a neutral cable, making its integration compatible with the majority of existing electrical circuits. It easily connects to the Ajax system via QR code pairing, offering simplified remote control through the Ajax app.

The 2-way LightSwitch is capable of driving lamps ranging from 5 to 600 W, and it is possible to group up to 4 switches on a single installation frame.

Technical characteristics

• Type: Relay mechanism for single reciprocating switch
• Control: Touch with touchless option
• Installation: No neutral cable required
• Supported power: 5 to 600 W
• Pairing: By QR code scan
• Remote control: Via the Ajax app
• Compatibility: Up to 4 switches can be installed on a single frame
• Weight: 48 g
• Dimensions: 76.3 × 72.3 × 29.2 mm
