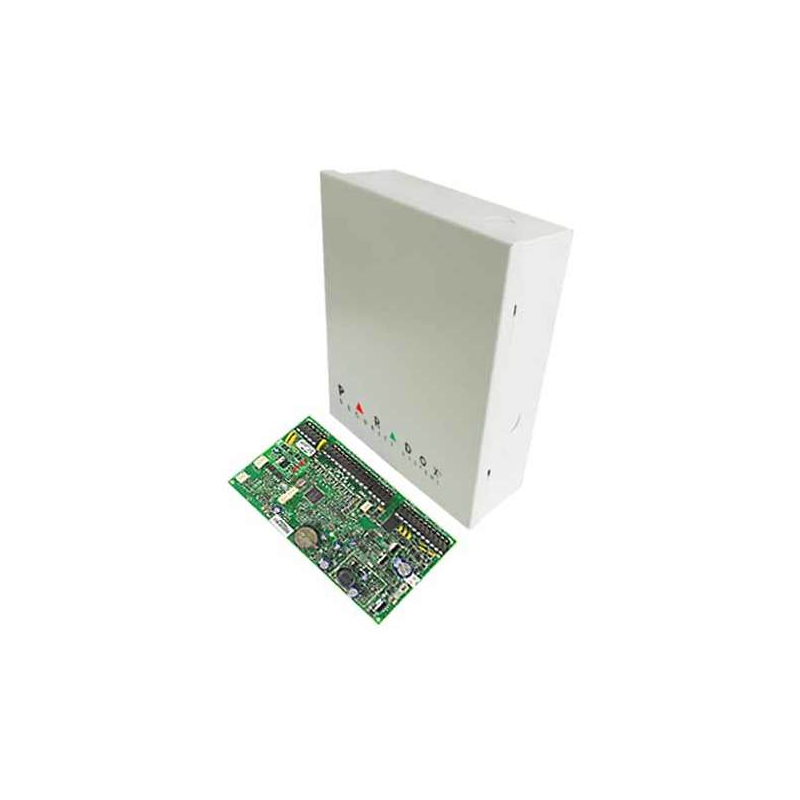

Paradox EVOHD central alarm 192 zones

The Paradox EVOHD alarm panel is an improved version of the EVO192, it is the heart of the Insight system, with support for HD88 / HD8F camera detectors.

It provides faster, more reliable communication over VOIP lines at 1200 baud and a large 3.5A power supply with fast adaptive battery charging.

By using a 75VA transformer, up to 2A of power can be used at the auxiliary output and a 7Ah battery will be charged within hours.

The control panel's redundant communication methods generate reports to the central monitoring system (CMS) via IP, GSM, GPRS, landline or any combination.
Designed for easy installation and expansion of additional products, the EVOHD can support up to 254 security devices and 192 zones. The control panel's flexible zone assignment allows any detector to be assigned to any zone, regardless of the physical location of the connection.

Pardox EVOHD features:

• Faster - dialer on VOIP lines at 1200 baud

• Efficient battery charging - up to 17 AH

• 80VA transformer


• Power source

• 2.5A switching

• 2A power available for modules/devices (requires 75VA transformer)

• Digital bus

• Provides continuous power, management and two-way communication between control panel and modules

• Efficient and effective use of zone deployment

• Built-in tamper reports of EVOHD connected devices without additional wiring

• PGM Setup

• 4 Solid State Integrated PGMs (2-4)

• 1 onboard 5A PGM relay

• PGM1 can be used as a 2-wire smoke input

• 8 Zones expandable up to 192

• Sheet music 8

• Users 999

• PGM 5 on card expandable up to 32


• Additional modules 254

• Metal box 402mm 332 mm 110 mm 80 VA transformer
