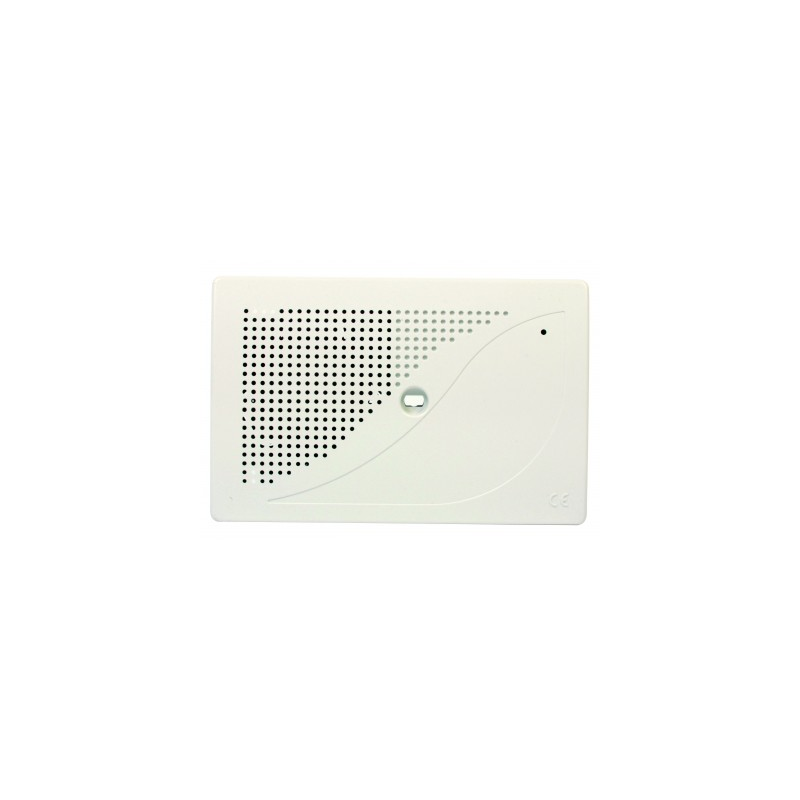

Siren alarm wired indoor self-powered ABS Altec IF-BOX-

Find out IF-BOX, the fruit of the technology ALTEC combined with our know-how since many years in the field of manufacturing of safety equipment.

The electronic part has been particularly well maintained with a high level of technical performance.

The If-Box is equipped with a self-protection at the opening.

This new version integrates 5, the dip switch allows for the selection of the sound power and the consumption ; the management of self-protection at the opening, the order of block appearance or disappearance, by a 12 Vdc or 0 Vdc, the management of the power supply.

The choice of an IF-BOX represents the commitment of a mermaid of high quality, with no equivalence to this day for a product of this category.

Characteristics IF-BOX:

Presentation

• ABS housing with UV / flammability class V-0

• Housing is self-protected opening

• Dimensions : 113 x 172 x 47.5 mm

• Operating temperature : - 10 °C to + 55 °C

• Weight : 300 g

• Conforming to standards 50131-4, EN 50130-4, EN 55022 and EN 60950

• IP 31 and IK 07

• Housing for battery 9 V alkaline or rechargeable 9 V Ni-Mh (not supplied)

Power

• Operating voltage + 12 V direct : 9 to 14 VDC

• Operating voltage + 12 V load : 10 to 14 VDC

• Power consumption in standby : 1 mA max

• Consumption in alarm : 250 mA (106 dBa) or 50 mA (99 dBa)

• Protection against surge, esd and reverse polarity

• Autonomy on battery or internal battery 36 hours

Operation

• 1 control input [sir]

• Duration of the alarm timed to 10 minutes

• 1 Dip-Switch to select the power and the consumption

• 1 Dip-Switch to a command in the positive or negative polarity

• 1 Dip-Switch to trigger the appearance or disappearance of the control signal

• 1 Dip-Switch to cancel the monitoring of the power supply

• 1 Dip-Switch to manage the AP opening only or opening

• Sound power at 1 meter : "106 dBa or" 99 dBa
