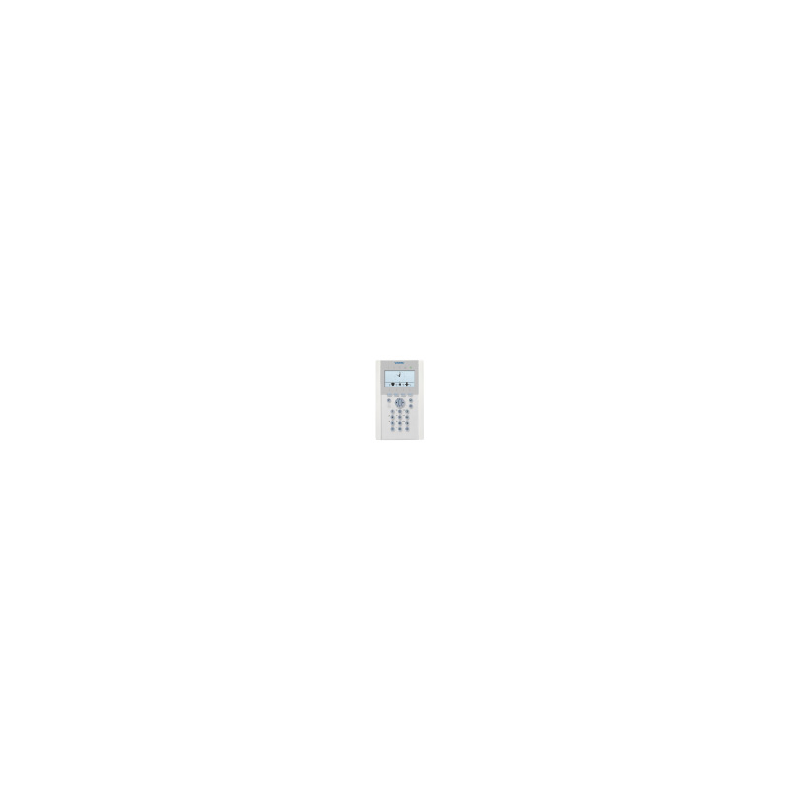

The keyboard comfort SPCK623 takes on the characteristics of the keyboard SPCK620.
It integrates a proximity reader compatible with the badges EM4102' allowing the user to control the system (start/ stop of 1 or several areas of oversight).
This keyboard also has a voice synthesis board useful for use without any worries. The user is assisted during the upgrade actions in or outside monitoring of its system', or in technical events occurring on the installation. The microphone and the built-in speaker makes already compatible with the future functions of the audit alarm audio.
The features of this keyboard can be extended with the box key SPCE110 or case synoptic SPCE120.
|
LCD display |
128 x 64 pixels (approximately 6 x 20 characters) |
|
Specific keys |
4 function keys, 1 navigation key |
|
LED indicators |
5 status LEDs |
|
Badge reader |
The integrated 125 Khz, EM 4102) |
|
Audio |
Possible, via microphone and speaker built-in |
|
Interfaces |
X-BUS (Input / Output) |
|
Contact self-monitoring |
Self-protection at the opening |
|
Operating voltage |
9.5 ~ 14 Vdc |
|
Intensity of operation |
Max. 230 mA /12 Vdc (backlight' |
|
Operating current optimal |
Max. 110 mA at 12 Vdc |
|
Mounting |
Applied |
|
Operating temperature |
5 ~ +40 °C |
|
Color |
RAL 9003 (white) |
|
Weight |
0.380 kg |
|
Dimensions (L x H x P) |
112 x 185 x 28 mm |
|
Key Box / Cabinet |
Case plastic (Polycarbonate) |
|
Certification |
EN50131-1 / EN50131-3, Grade 3, Class II |
Lot of 10.
This alarm is not dependent on any Cloud!
