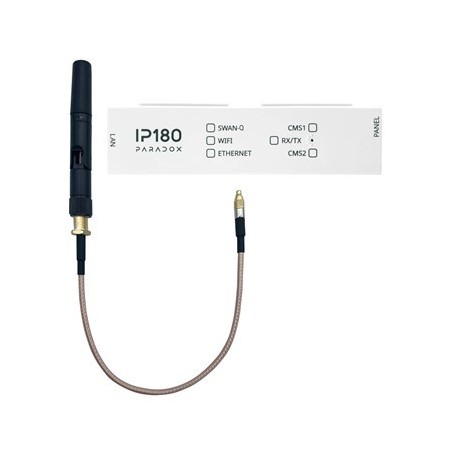

Paradox IP180-IPW IP communication interface module with Wi-Fi antenna
The Paradox IP180 Internet Communication Module is used to remotely signal and connect to Paradox systems via the Internet.
Reporting to the central station's CMS is possible via the Paradox IPC10 receiver/converter.
The Paradox IP180 Internet Communication Module connects to the system remotely with the BlueEye app, PC software, and allows for remote system upgrade.
The Paradox IP180 Internet Communication Module can connect with an Ethernet cable or via Wi-Fi or both with failover.
The Paradox IP180 Internet communication module can also be upgraded remotely. The Paradox IP180 Internet Communication Module can also send system events via email.
Module de communication IP
Allows remote reporting and connection to Paradox systems via the Internet.
Allows reports to be sent to the CRA via the Paradox PAR-354 (IPC10) converter.
PAR-354 (IPC10) to CRA Output Format: MLR2-DG or Ademco 685
The module connects to the system remotely with the BlueEye app (PC) and allows the system to be updated remotely.
Provides connectivity to BlueEye, BabyWare, NEware, or InField to access your system via the Internet.
Can connect with an Ethernet cable or via WiFi (requires a PAR-357 antenna ) or both with failover.
Configuration-free DHCP connectivity
Allows system events to be sent via e-mail
Over-the-air firmware updates
Uses MQTT technology with 128-bit encryption
Email event notification with AES encryption (128-bit)
Includes LED status indicators
Fast, simple and screw-free installation
Minimum requirements
The optional PAR-357 (IP180ANT) WiFi antenna can be easily connected and installed in the metal housing.
Voltage of 10V~16.5V DC (supplied by the serial port of the panel)
100 mA power consumption
Operating Temperature Range -20°C ~ +50°C
Dimensions: 109 (W) x 27 (H) x 22 mm
Compatible with EVOHD+, Spectra+, Magellan+ and most panels manufactured from 2012 onwards
Certificates: CE, EN 50136 ATS 5 Class II
