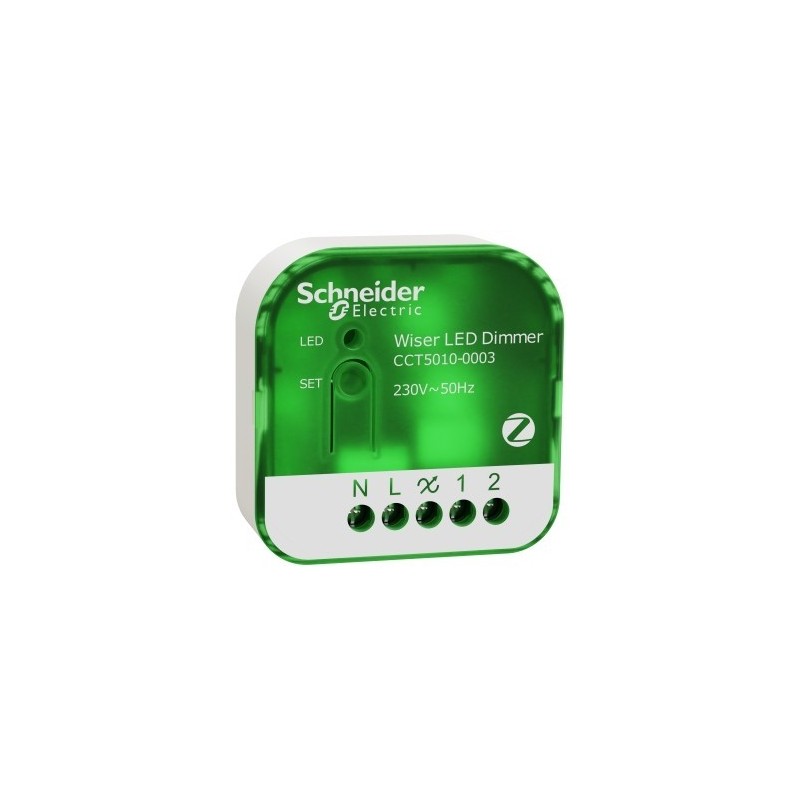

Schneider Wiser CCT5010-003 - Zigbee LED dimmer module
The Schneider Wiser CCT5010-003 module is an LED dimmer module compatible with Zigbee technology.
The Zigbee CCT5010-003 module allows the light intensity of LED lamps to be controlled via a wireless network, providing a convenient solution for managing the lighting in your home or office.
Characteristics Schneider Wiser CCT5010-003 - Zigbee LED dimmer module:
-
Product Brand: Schneider Electric
-
Range: Wiser
-
Type of product or equipment: Connected drive
-
Related Accessories: Wiser hub generation 1
-
Mobile App Name: Wiser by SE
-
Color shade: Green White
-
Charging Type:
-
LED lamp: 0...200 W at 230 V AC (RC LED mode)
-
Incandescent lamp: 0...300 W at 230 V AC
-
230 V halogen lamps: 0...200 W to 230 V AC
-
Halogen lamp with standard electronic transformer: 0...300 W at 230 V AC
-
Drive Type: Trailing Edge
-
Dimmer Application: Light
-
Drive control
-
Local control by push button
-
Remote control
-
Memory function
-
[EU] Rated Operating Voltage: 220...240 V AC 2 Phase
-
Standby power: < 0.4 W
-
Fuse rating to be paired: 16 A
-
Type of protection
-
Overheat protection
-
Short circuit protection
-
Automatic overload protection
-
Surface Treatment: Untreated
-
Local signalling: LED (green/red/orange)programming indication:
-
Order Type
-
Local control control of the variation +/-
-
Remote control via auxiliary push button, on/off switch function
-
Remote control via auxiliary push button, dimming control +/-
-
Remote Control Wiser App Function On/Off Switch
-
Remote Control App Wiser Variation Control +/-
-
Remote Control App Wiser Device Programming
-
Software Name
-
Wiser by SE App: control of the variation range
-
Wiser by SE App: Programming the switching time
-
Wiser by SE App: Activate Timer Mode
-
Wiser by SE App: dimming mode management
-
Wiser by SE App: Enable brightness/memory function
-
Wiser by SE App: Enable Timer/Overflow Time Mode
-
Wiser by SE App: upgrade firmware
-
Maximum number of connected devices: 10 Zigbee 3.0:
-
Connected auxiliaries: 10 auxiliary push buttons maximum
-
Cable length: 50 m
-
Configuring the wiring
-
3-wire with neutral
-
No neutral
-
Connection: Screw terminal
-
Terminal Clamping Capacity:
-
1,5… 2.5 mm² for rigid cable(s)
1,5… 2.5 mm² for Rigid Twisted Multistrand Cable(s)
Mounting bracket:
Wall box
DIN rail with accessory
Installation Box
Device Mounting: Flush
Installation Type: Indoor Installation
Mounting depth: 25 mm
Depth: 18.5 mm
Width: 45 mm
Height: 45 mm
Product weight: 0.023 kg
Environment
Operating Temperature Range: -5... 35 °C
IP protection level: IP20
Impact resistance IK: IK02
Environment Feature: Indoor Use
Operating altitude: <= 2000 m
Product certifications: CE, RoHS, Zigbee 3.0
CCT5010-003
30 Items
Data sheet
- Protocol
- ZigBee
- Functions
- Actuator/Dimmer
- Type
- Wireless
Specific References
- EAN13
- 3606486863121
