NODON opening Sensor...
NODON opening Sensor EnOcean White color.
Works without a battery.
The mico-module TYXIA 4811 pallows you to add a control point to a lighting circuit.
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")

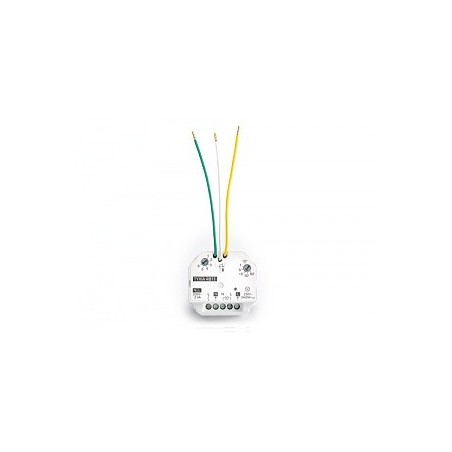

The TYXIA 4811 module allows new wireless control points to be added to the wired switch of a lighting circuit.
The TYXIA 4811 module has a timer function: setting the operating time of the lighting from 10 s to 1 h.
The TYXIA 4811 module incorporates a warning of extinction function: a first flashing of the lighting, followed by a second informs the user before the final extinction.
Specific timer for parts with air extractor: in combination with a presence detector, allows the extractor to operate in case of presence detection greater than 80 seconds.
Product certified "pep ecopassport"
1 control channel out On/Off 10 A
2 pre-wired wires for connection with local control switch or presence detector with dry contact of potential-free output
1 wired phase input on twilight presence detector with powered phase output contact
Maximum power:
on resistive load: 2300 W
on electronic or ferromagnetic transformer: 1000 W
on other loads: 300 W
Timer duration adjustable from 10 s to 1 hour
Neutral phase power supply 230V
Operating temperature: -5° to 35°C
Dimensions: H 33 x W 50 x D 47 mm
