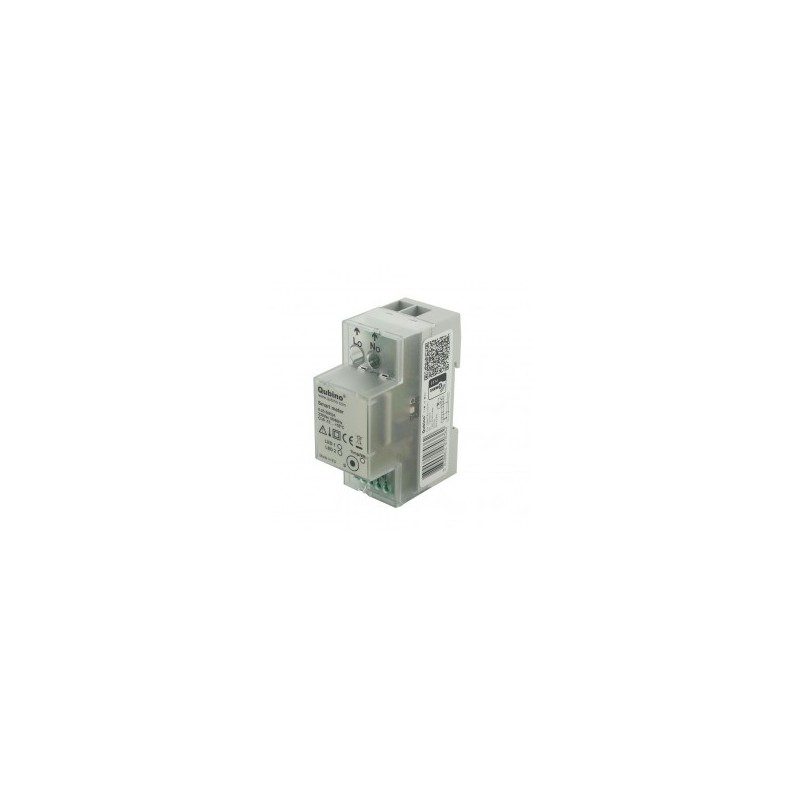

Qubino - ZMNHTD1 - energy Meter Z-wave Plus SMART METER DIN rail
search
  • Qubino - ZMNHTD1 - energy Meter Z-wave Plus SMART METER DIN rail

Qubino ZMNHTD1 - energy Meter Z-wave Plus SMART METER DIN rail

€84.24
VAT included

Qubino energy meter Z-wave Plus SMART METER.

Allows to measure the energy consumption of an electrical network.

Module DIN-rail.

Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Qubino energy meter Z-wave Plus SMART METER.

The energy meter ZMNHTD1 Qubino measure the energy in an electrical network 2-wire single phase up to 65 Amps.

The energy meter ZMNHTD1 Qubino can also control devices in ON/OFF mode with the addition of the contactor 32 HAS IKA232-20 / 230 V or switch BICOM432-40-WM1

Features:

  • Measurement of the power consumption overall, or a circuit

  • Provides the data of voltage, current, active power, reactive and apparent, and power factor

  • Integrates the chip Z-Wave 500 series (Z-Wave+)

  • Communication 250% faster compared to devices Z-Wave standard

  • The first module DIN-rail Z-Wave in the world

  • Operating temperature -10 to 40 °C

  • Port of optical communication (IR) for an external relay BICOM432-40-WM1

  • Output for connection to an external contactor IKA232-20 / 230 V

  • Installation in the electrical panel

  • Power Supply: 230 V (± 20%)

  • Consumption: <2W

  • Reference current (Iref): 5

  • The maximum current (Imax): 65

  • Minimum current (Imin): 0.25 A

  • Startup current: 20 mA

  • Details:

    • Power and energy active:

      • Standard EN 62053-21: class 1

      • Standard EN 50470-3: class B

    • Reactive energy:

      • Standard EN 62053-23: class 2

  • Frequency of radio emission : 868.42 MHz, Z-Wave

  • Range : up to 30 m indoors (depending on surrounding materials)

  • Operating temperature : -10 ~ 40°C

  • IP Protection: IP20

  • Dimensions (W x H x d) : 90 x 64 x 36mm

  • Weight : 150g

  • Certifications : CE, RoHs



ZMNHTD1

Data sheet

Protocol
Z-WAVE
Functions
Power consumption
Type
Wireless

Specific References

EAN13
3830062070362
