- -10%
EUTONOMY - Adapter euFIX DIN-RAIL module Fibaro FGD-212 without buttons
€25.95
€23.36
Save 10%
VAT included
Adapter euFIX DIN module Fibaro FGD-212 without buttons Eutonomy
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Adapter euFIX DIN module Fibaro FGD-212 without buttons Eutonomy

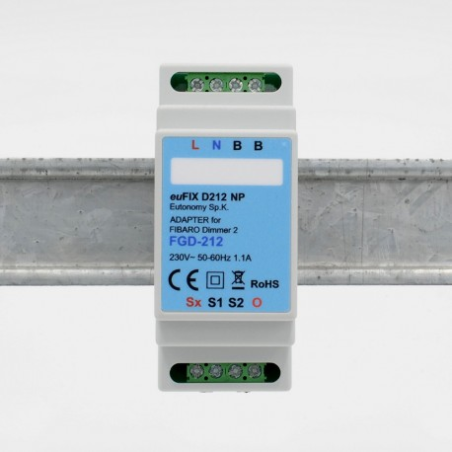

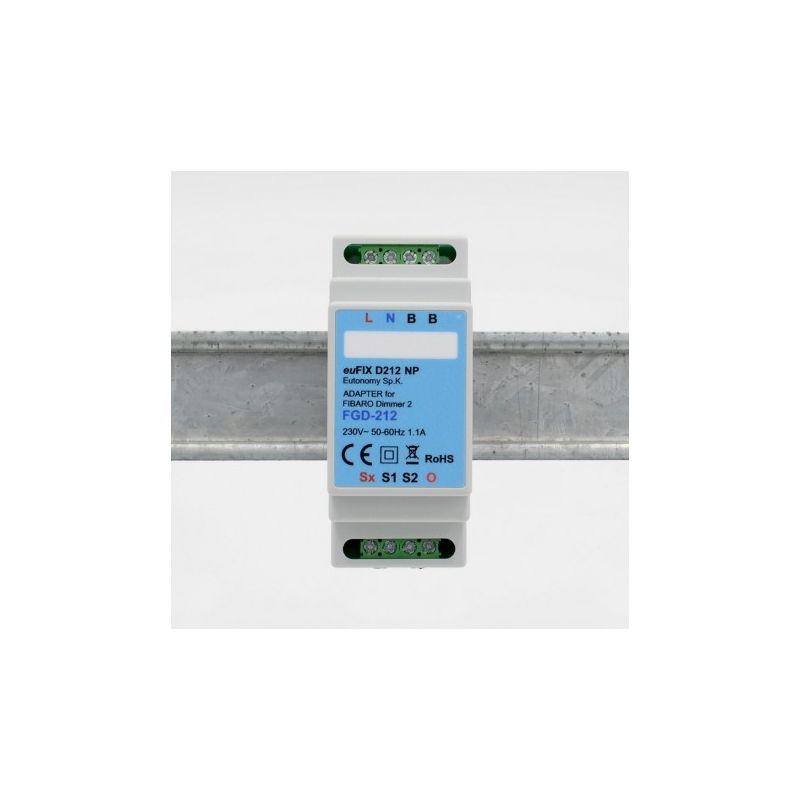

The adapter Eutonomy euFIX D212NP is used to install the module Fibaro® Switch FGD-212 on a rail of type DIN TH35 in the electrical panel.
The adapter Eutonomy euFIX D212NP consists of a housing and an electronic card, on which the Switch module FGD-212 is mounted.
The dimensions of the case are appropriate for a standard rail DIN TH35/TS35.
The e-card contains a set of screw terminals, where all the wires (power, signal input and output, command buttons) can be connected safely.
Features D212NP:
-
Adapter DIN to Fibaro Switch FGD-212 without push buttons
-
Used to install the module Fibaro Switch FGD-212 rail of type DIN-TH35 / TS35 in the electrical panel
-
Location free on the label to identify the line controlled
-
Supply voltage: 230 V AC +/- 10%, 50-60Hz
-
Power load: max 6.5 A per channel, 10A total
-
Dimensions: 34,8 x 87,3 x 64,7 mm
-
Width in units TE: 2 TE coolers
-
Cross Section of the conductor of wire : max. 2.5 mm2
-
Maximum length of the wires connected to the inputs Sx, S1, S2: 20m
-
Operating temperature: 0 ° C to +50 ° C
-
Relative humidity: ≤90%, no condensation
-
Guidelines:
-
LVD 2014/35 / EC
-
RoHS 2011/65 / EU
-
D212NP
5 Items
Data sheet
- Functions
- Accessories
Specific References
- EAN13
- 5906874103081
Comments (0)
No customer reviews for the moment.
