Adapter euFIX DIN-RAIL module Fibaro FGD-212 with buttons Eutonomy

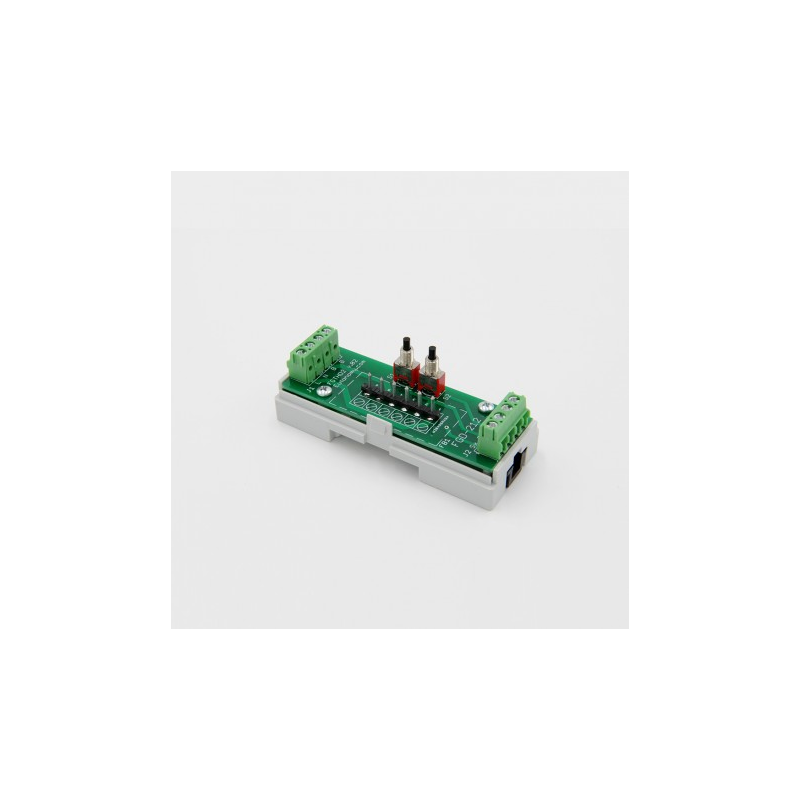

The adapter Eutonomy euFIX D212 is used to install the module Fibaro® Switch FGD-212 on a rail of type DIN TH35 in the electrical panel.

The adapter Eutonomy euFIX D212 consists of a housing and an electronic card, on which the Switch module FGD-212 on a rail of type DIN TH35 in the electrical panel.is mounted.

The dimensions of the case are appropriate for a standard rail DIN TH35/TS35.

The e-card contains a set of screw terminals, where all the wires (power, signal input and output, command buttons) can be connected safely.

The front panel of the case contains two micro-buttons of diagnosis S1 and S2, which can be used to control the module, save the module in the Z-Wave system or remove it from the system without opening the housing of the adapter.

Features D212:

• Adapter DIN to Fibaro Switch FGD-212 on a rail of type DIN TH35 in the electrical panel. without push buttons

• Used to install the module Fibaro Switch FGD-212 on a rail of type DIN TH35 in the electrical panel. rail of type DIN-TH35 / TS35 in the electrical panel

• Location free on the label to identify the line controlled

• Supply voltage: 230 V AC +/- 10%, 50-60Hz

• Power load: max 6.5 A per channel, 10A total

• Dimensions: 34,8 x 87,3 x 64,7 mm

• Width in units TE: 2 TE coolers

• Cross Section of the conductor of wire : max. 2.5 mm2

• Maximum length of the wires connected to the inputs Sx, S1, S2: 20m

• Operating temperature: 0 ° C to +50 ° C

• Relative humidity: ≤90%, no condensation

• Guidelines:

  • LVD 2014/35 / EC

  • RoHS 2011/65 / EU
