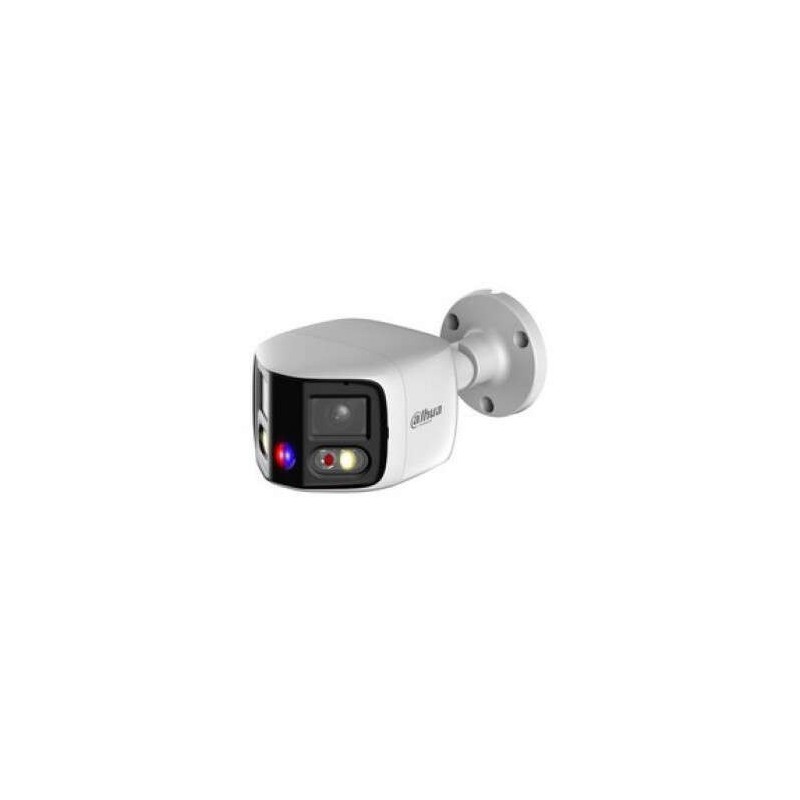

Dahua IPC-PFW3849S-A180-E2-AS-PV - 2 x 4 Megapixel IP Camera

Dahua IPC-PFW3849S-A180-E2-AS-PV camera has WizSense technology and AI solutions that adopt an independent AI chip and deep learning algorithm.

The Dahua IPC-PFW3849S-A180-E2-AS-PV camera focuses on the human and the vehicle with high accuracy, allowing users to act quickly on defined targets.

Based on Dahua's advanced technologies, WizSense offers smart, simple, and inclusive products and solutions.

The Dahua WizSense Series 3 Network Camera saves significantly on bandwidth and storage space with its AI coding technology.

Driven by its advanced deep learning algorithms, the camera supports smart functions such as perimeter protection, intelligent motion detection (SMD)

• Produces a 180° wide-angle splicing image.

• Max. outputs 8 MP (4096 × 1860) at 20 fps.

• H.265 codec, high compression ratio, ultra-low bitrate.

• Built-in IR LED and warm light, the maximum.

• The IR illumination distance is 25m, and the warm light distance is 20m.

• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

• WDR, 3D NR, HLC, BLC, digital watermark, applicable to various surveillance scenes. Alarm: 1 input, 1 output; Audio: 1 in, 1 out

• Supports max. 256GB Micro SD card

• Built-in dual mics

• Built-in speaker

• Supports two-way talk.

• 12 VDC/PoE power supply, easy to install.

• IP67 protection.

• Sound and light alarm (red and blue lights).

Smart Dual Light

Dahua Smart Dual Light technology adopts an intelligent algorithm to detect targets. Usually, the IR illuminator is turned on at night; When the target appears in the monitoring area, the warm light is turned on and the camera Quick Pick, making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear and vivid images even in poor lighting conditions.

SMD 4.0 intelligent motion detection technology

Dahua works with intelligent algorithms to classify targets that trigger motion detection alarms.

It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms.

With an AI NVR, Quick Pick technology becomes available, allowing you to easily search and select human targets and vehicles from SMD event videos, prioritizing the highest matches.

EPTZ

With advanced target detection and tracking algorithms, Dahua EPTZ technology can zoom in and track multiple people and vehicles simultaneously triggering alarms. It offers both rich detail and panoramic views.

Siren and active deterrent light

Dahua siren and light active deterrent network camera support light alarm and voice alarm when a perimeter event occurs, to realize deterrence and effective intervention.

The camera is integrated with multiple voices for selection and supports custom voice import. records color video and key event information.

In other words, the camera connects the snapshot and the video to the color image.

When the target is out of the monitoring area, the warm light is turned off and the IR illuminator is turned on, which effectively reduces light pollution.

One-click disarming

Dahua's convenient and easy-to-use one-click disarm function is the switch for linking events.

Customers can close and recover event binding through a mobile app, which meets multi-scenario needs.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict dust and immersion tests.

It has an anti-dust function, and the case can work normally after being soaked in 1m deep water for 30 minutes.

Wide voltage: The camera allows an input voltage tolerance of ± 30% (for some power supplies) (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.

Cybersecurity

Dahua network cameras use a range of security technologies, including security authentication and authorization, access control protocols, reliable protection, encrypted transmission, and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malware from compromising the device.

Characteristics Dahua IPC-PFW3849S-A180-E2-AS-PV - 2 x 4 Megapixel IP Camera :

• Fixed Lens: 2.8mm

• 1/2.7'' CMOS sensor

• Maximum resolution: 2x4MP

• Infrared Distance: 25 meters

• White light distance: 20 meters

• Image enhancement function: WDR(140dB), 3D NR, HLC, BLC, digital watermarketing

• Power supply 12 VDC, PoE (802.3af), max 10.3W

• IP67

• 20fps@8MP(4096x1860)

• Video compression: H.265/H.264/H.264H/H.264B/MJPEG

• Intelligent Analysis Function: Intrusion Detection, Line Crossing (Humans and Vehicles)

• Minimum illumination 0.005 lux@F1.4

• Micro SD card slot, max. 256GB

• I/O 1/1 Audio Outputs, I/O 1/1 Alarm Outputs

• 3 video streams

• ONVIF (S, G and T), CGI compatibility

• 1 RJ45 (10/100 Base-T)

• Fixing: wall and post

• Operating Temperature -40°C to 60°C

• Dimensions: 18.3cm x 9.9cm x 7.8cm

• Weight: 695g
