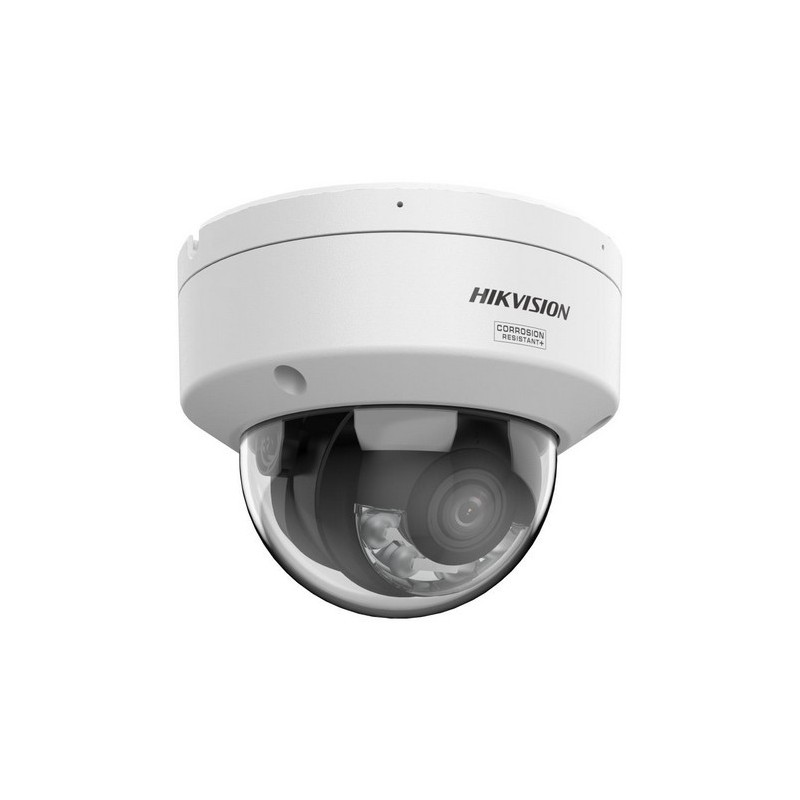

HIKVISION DS-2CD2147G3-LIS2UY - ColorVu 4MP IP Dome 2.8mm IP67 IK10 AcuSense 3.0 Lens

The Hikvision DS-2CD2147G3-LIS2UY dome is a CCTV camera with advanced features.

The Hikvision DS-2CD2147G3-LIS2UY dome is a versatile surveillance camera, ideal for indoor or outdoor use, with outstanding performance for 24-hour surveillance, especially for areas with enhanced security needs and challenging lighting conditions.

Key features:

1. Resolution and image:

• Resolution : 8 MP (Megapixels) – Ultra High Definition video (4K equivalent), offering extremely detailed images.

• Video compression : H.265+ for efficient compression, reducing storage space while preserving video quality.

• Sensor type : High-sensitivity CMOS for clear images, even in low-light conditions.

2. Lens and angle of view:

• Motorized Lens : Vari-focal lens, typically from 2.8 mm to 12 mm (depending on the version), allowing easy adjustment of the field of view to suit different types of sites.

• Angle of view :

  • Horizontal : Approximately 90° to 30°, depending on the focal length chosen.

  • Allows you to cover a wide area or focus on specific details.

3. Lighting Features (IR and ColorVu):

• IR (Infrared): Range up to 30 meters thanks to improved IR technology.

• ColorVu Technology : Provides color images even in low light (down to 0.002 lux), ideal for detailed nighttime images.

4. Strength and durability:

• IP67 rating : Dust resistant and waterproof, suitable for outdoor use in all weather conditions (rain, snow, etc.).

• IK10 Impact Rating : Protects the camera from vandalism and physical impact.

5. Intelligent Detection:

• Face Detection : Ability to detect and capture faces for enhanced identification.

• Motion detection : Detection of suspicious motion in a specified area.

• Intrusion detection : When an object or person enters a prohibited area.

• Line Crossing Detection : Alerts when a person or object crosses a virtual line defined in the image.

• People counting : Ideal for high-traffic areas such as shops, allowing you to count the number of people entering or leaving.

6. Power and connectivity:

• PoE (Power over Ethernet): Power over Ethernet cable, simplifying installation by using only one cable for video and power.

• Network connectivity : IP connectivity via Ethernet network (10/100 Mbps) for remote management, web interface access, and integration into a video management system (VMS).

7. Audio:

• Audio Input and Output : Allows audio recording and two-way communication through a built-in microphone and speaker. This can be used for intercoms or voice notifications.

8. Operating temperature :

• Temperature Range : Operates in a temperature range of -30°C to 60°C, allowing for use in both cold and hot environments.

9. Management and Control:

• Software : Compatible with iVMS-4200, Hikvision's video management software, as well as Hik-Connect mobile apps for live views and remote management via smartphones/tablets.

• ONVIF Protocol : Ensures compatibility with third-party NVRs (network video recording).

10.

• Dimensions : Approx. Ø 123 mm x 89.5 mm (diameter x height).

• Weight : Approx . 0.35 kg.

Summary of the main features:

• 8 MP high definition with a wide field of view.

• ColorVu for a full-color image even in low light.

• Intelligent detection (faces, intrusion, line crossing, people counting).

• PoE, weatherproof (IP67) and vandal-proof (IK10).

• Two-way audio and H.265+ compression.

HIKVISION DS-2CD2147G3-LIS2UY - HIKVISION DS-2CD2147G3-LIS2UY - ColorVu 4MP IP Dome 2.8mm IP67 IK10 AcuSense 3.0 Lens

• Fixed Lens: 2.8mm

• 1/1.8'' CMOS sensor

• Maximum resolution: 4MP

• Infrared distance: 30 meters

• Image enhancement features: ColorVu, WDR (130dB), BLC, 3D DNR, HLC

• DC12V power supply, 0.6A, max. 7.2W, PoE (802.3af), max. 9W

• IP67, IK10

• Horizontal angle of view FOV: 111.1°; vertical FOV: 57.6°; Diagonal FOV: 138.5°

• 2688x1520@25fps

• Video compression: H.265/ H.265plus/H.264/H.264plus

• Smart Features: Intrusion Detection, Line Crossing, Scene Change, Motion Detection

• Minimum illumination 0.0001Lux@F1.0 (color), 0 Lux (black and white)

• Built-in dual microphones for high-quality, real-time audio security

• Smart Hybrid Light: Integrates IR and White Lights, 3 Additional Lighting Modes

• HikAI-ISP for excellent noise reduction effect

• Pan: 0°~355°, tilt: 0°~75°, rotation: 0°~355°

• I/O Alarm 1/1, Audio I/O 1/1

• Shutter speed: 1s to 1/100,000s

• 1 x 10M/100M RJ45 port

• Micro SD/SDHC/SDXC card slot, max. 512GB

• Operating temperature: -30°C to 60°C

• Dimensions: Ø12.1cm x 9.7cm

• Weight: 600g
