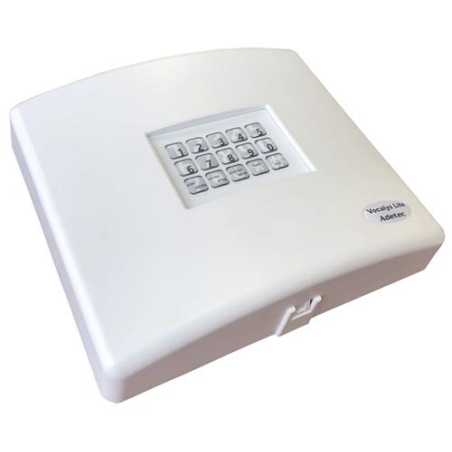

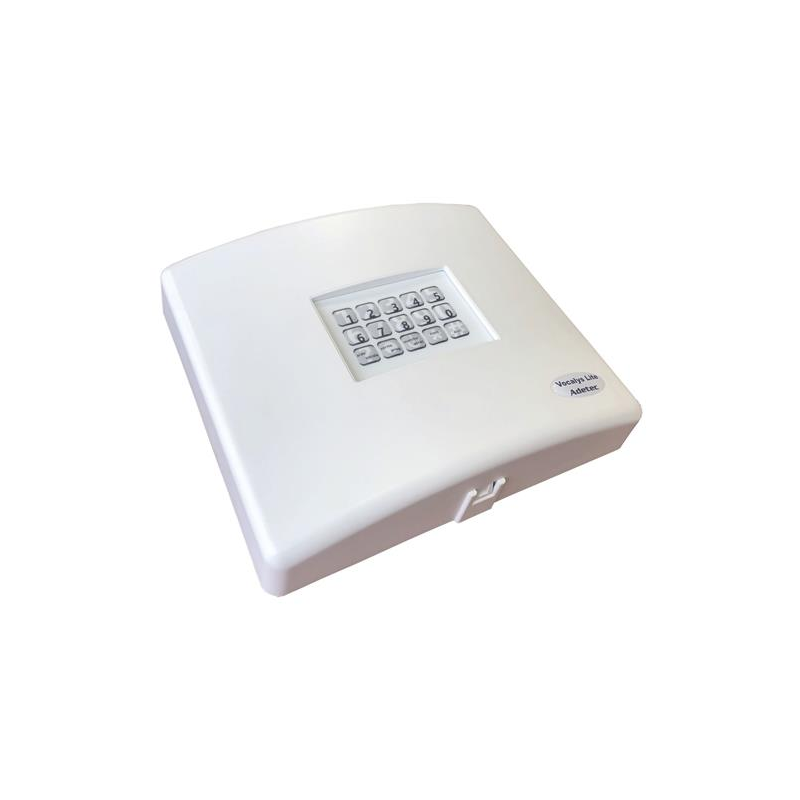

Adetec Vocal PSTN Transmitter 5 Inputs

Transmitter for alarm center

Characteristics :

• Number of inputs: 5 + 1 on/off

• Programming: individual per input INTERNAL INFORMATION

• Power supply supervision OUTPUTS

• Number of outputs: 2

• Programming: individual per output

• Output interface: transistor type (I max 30 mA) TELEPHONY

• Number of call numbers: 4

• Voice transmission: 5 messages (1 per entry)

• User recordable voice messages

• Acknowledgment mode: programmable AUDIO INTERFACE

• Microphone / loudspeaker: integrated TECHNICAL CHARACTERISTICS

• Supply voltage: 12 to 15 VDC

• Consumption: In standby < 40 mA - In connection < 60 mA • Local programming: 15-key keypad • Self-protection: Integrated switch

• Data backup: Non-volatile memory (E²prom)

• White ABS (V0) case • Dimension (H x W x D): 200 x 225 x 55

• Operating temperature: 0°c to 49°c

• Relative humidity: 0% to 93%

• Approvals: Conforms to European Standards a
