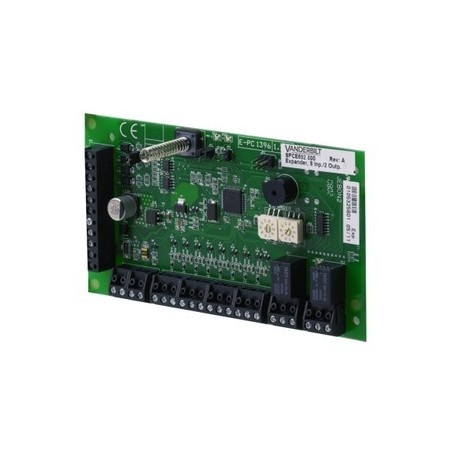

The addition of a transponder SPCE650 on the X-BUS to a central SPC extends the system with 8 inputs wired and 2 relay outputs configurable additional.
The functioning of these inputs and outputs are identical to those that are located on the motherboard of the central.
Each input can be wired in different ways (No' Nf' balanced 1R' balanced 2R' balanced 3R).
The 2 outputs are relay outputs RTC potential-free.
The transponder is delivered in a box self-protected opening and pull-out.
It is' among other things' provided with a LED and a buzzer to locate it easily on the site equipped.
|
Number of inputs on the motherboard |
8 |
|
Resistance end of line |
2R 4K7 default, other combinations of resistors configurable |
|
Number of relays on the motherboard |
2 x RTC, 30 Vdc / Max 1A resistive load |
|
Interfaces |
X-BUS (1 input and 1 output X-BUS) |
|
Contact self-monitoring |
At the opening and tear |
|
Operating voltage |
9.5 ~ 14 Vdc |
|
Intensity of operation |
Max. 80 mA at 12 Vdc (all relays activated) |
|
Operating current optimal |
Max. 40 mA at 12 Vdc |
|
Operating temperature |
-10 ~ +50 °C |
|
Mounting |
Applied |
|
Color |
RAL 9003 (white) |
|
Weight |
0.350 kg |
|
Dimensions (L x H x P) |
200 x 153 x 47 mm (case), |
|
Key Box / Cabinet |
Plastic case, ABS |
|
Standard / Certificate |
EN50131-1 / EN50131-3, Grade 3, Class II |
