Central alarm Vanderbilt 8/32 areas with built-in WEB server
€439.92
VAT included
Central alarm Vanderbilt 8/32 areas with built-in WEB server
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")

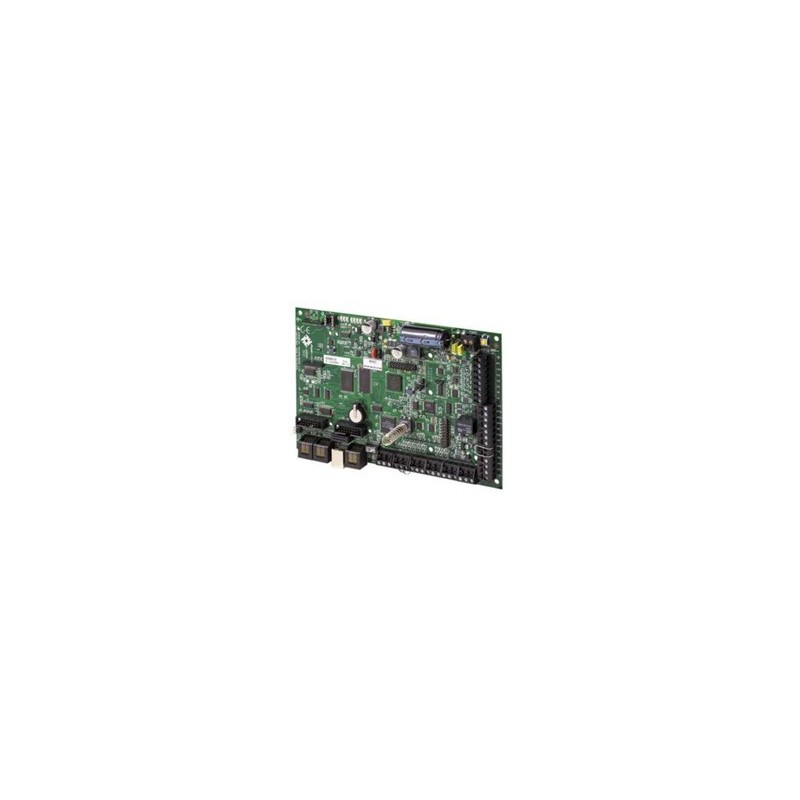

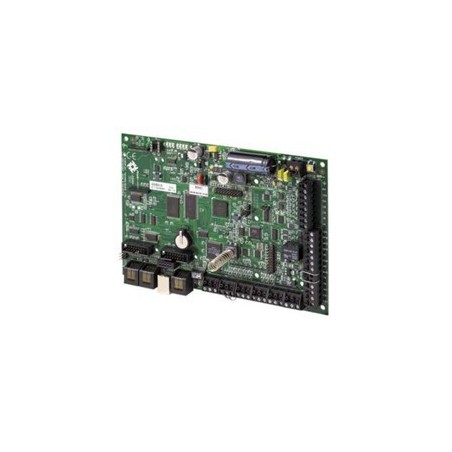

Central alarm Vanderbilt 8/32 areas with built-in WEB server
Anti-Intrusion system-native IP with embedded Web server EN50131 grade 2
Comes with documentation and programming software su CD-ROM.
The central alarm SPC4320 of Vanderbilt combines an Intrusion detection and optimal functionality of access control into a single system that can be extended depending on the specificities of customers and needs up to 32 inputs (8 on board), 30 outputs (6 on board) 4 keyboards, 4 access doors, 8 check boxes audio/video IP.
The plant handles 1-port X-BUS (1 branch), 4 areas, 100 users and badges with different access levels, memory for 1,000 alarms intrusion and 1000 events access, a built-in Web server, 2 connectors to receive the communication options PSTN and GSM/GPRS, Ethernet interface onboard.
The system is expandable with radio receivers and supports up to 32 detectors radio (cohabiting with the hardwired zones).
The power plant is mounted in a box self-protected with space for a battery of 7Ah.
Remote access
The features of the SPC system can be extended to meet the specific requirements of a customer or a market. The different
the triggers of the system (e.g. zones, areas, identification of users and periods of time) can be combined in a logical manner to activate the process.
Using the function Plug & Play SPC Connect on the IP, the central SSC can be accessed remotely via the web interface or mobile application.
Access control
The badge reader connected to facilitate entries and exits of buildings using the card and/or PIN code via 4 entry doors or 2 doors for entry/exit, combined with an in-service or out of service auto sectors, according to the rights of each user.
Main features :
|
Firmware |
V3.6.6 |
|
Areas of oversight |
4 |
|
Maximum number of user codes |
100 |
|
Remote controls |
Up to 32 |
|
Panic buttons radio |
Up to 32 |
|
Memory of events |
1000 events intrusion |
|
Language |
Multi-language (English + 4 other languages) |
|
Number of inputs on the motherboard |
8 |
|
Maximum number of entries wired |
32 |
|
Maximum number of entries radio |
32 (takes the place of wired input) |
|
Resistance end of line |
Defaults to 2 x 4k7. 15 possible combinations |
|
Maximum number of outputs |
30 |
|
Number of relays on the motherboard |
1 flash(30 VDC / 1 A) |
|
Number of open collectors on the motherboard |
5 outputs programmable 2 preset siren for indoor and outdoor current ( 400mA max. per output on resistive load) |
|
Number of doors managed |
4 doors, inputs, or 2 doors for entry/exit |
|
Number of card readers |
Max. 4 |
|
Radio Module |
Receiver SiWay SPCW111 integrated (868 Mhz) |
|
Calendar |
4 calendar (53 weeks, associated users, areas, inputs, outputs, keyboards, doors) |
|
Macro Language |
Controller that can handle 8 conditions, and control 4 process (causes & effects) |
|
Number of cards per bus |
Max. 11 (4 keypads, 2 door controllers, 5 transponders) |
|
Interfaces |
1 X-BUS (1 branch), |
|
Contact self-monitoring |
Self-protection at the opening, 2 inputs for external contacts |
|
Supply voltage main |
230 Vac, + 10%/ -15%, 50 Hz |
|
Intensity of operation |
Max. 160 mA at 12 Vdc |
|
Operating current optimal |
Max. 140 mA at 12 Vdc |
|
Output voltage |
13-14 Vdc in normal operation (powered at 230V, and charged battery) |
|
Auxiliary power (nominal) |
Max. 750 mA at 12 Vdc |
|
Battery Type |
YUASA NP7-12FR (7 Ah), not included |
|
Operating temperature |
0 to +40 °C |
|
Color |
RAL 9003 (white) |
|
Weight |
3,700 kg |
|
Dimensions (L x H x P) |
270 x 365 x 91 mm |
|
Key Box / Cabinet |
Small box base metal (steel 1.2 mm) and plastic lid (Polycarbonate 5VB) |
SPC4300.000
2 Items
Data sheet
- Security
- Central
- Type
- Wired
- Standard
- NFA2P
Specific References
