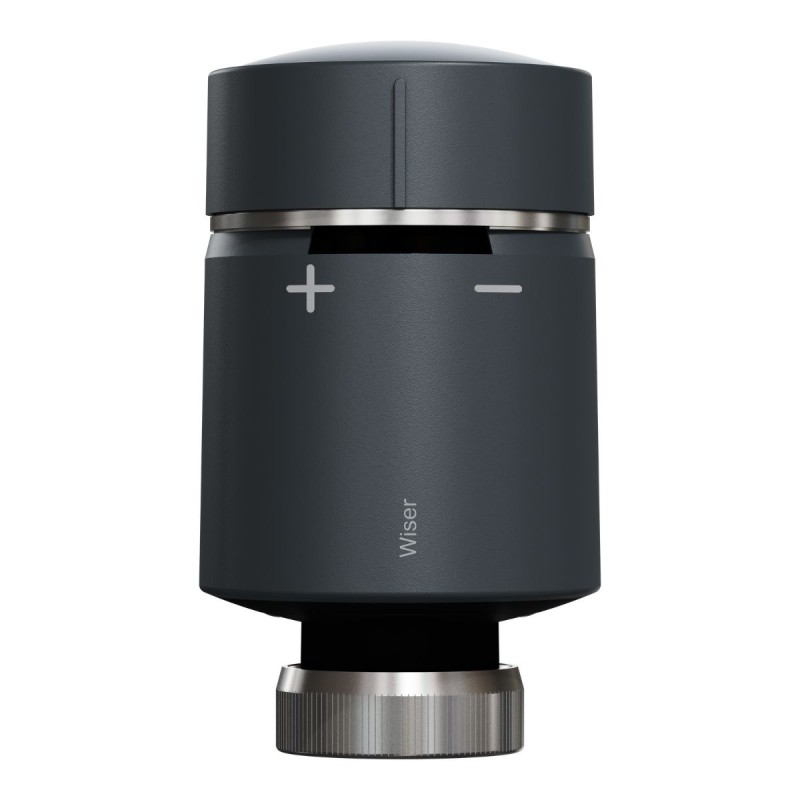

Wiser CCTFR6101 - Black Zigbee Connected Thermostatic Valve Head
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")
Wiser CCTFR6101 - Black Zigbee Thermostatic Valve
Wiser thermostatic valves simply replace a conventional valve.
Wiser thermostatic valves are supplied with an adapter to adapt to all types of installation (except manual valves) and allow the temperature to be adjusted room by room.
Technical characteristics Wiser CCTFR6101 - Black Zigbee thermostatic valve:
-
Function: Controls the flow of water through a radiator to ensure that the ambient temperature is within the desired set point
-
Remote control: connected to the Wiser Home Touch, and with the Wiser App (1), the temperature can be adjusted with a smartphone, via local wifi or remotely via the internet
-
Functions available with the Wiser App (1): Manual temperature control in each zone (time programming) up to 16 zones
-
Creation of time schedules for each zone
-
Hourly extension: changes to the temperature set point for (+/-) 0.5-1-2-3 hours
-
Signal strength display
-
Hourly extension: modification of the set point by ― 2°C for 1 hour by turning the valve cap to the left or right
-
Installation on existing radiator valves
-
dimensions (ø x D): 51 mm x 93 mm
-
Interface: Rotary Cap with Return Spring
-
Display: 3 status LEDs (red, blue, green/ yellow/ red)
-
Power supply: 2 x AA alkaline IEC LR6 1.5 V batteries (included) lifespan > 2 years
-
Supplied with M30x1.5 mm and Danfoss RA valve adapters (other adapters for other valve types available as accessories)
Data sheet
- Protocol
- WISER
- Functions
- Heating/Air Conditioning
- Type
- Wireless
Specific References
- EAN13
- 3606486700167
Download
Installation Wiser
