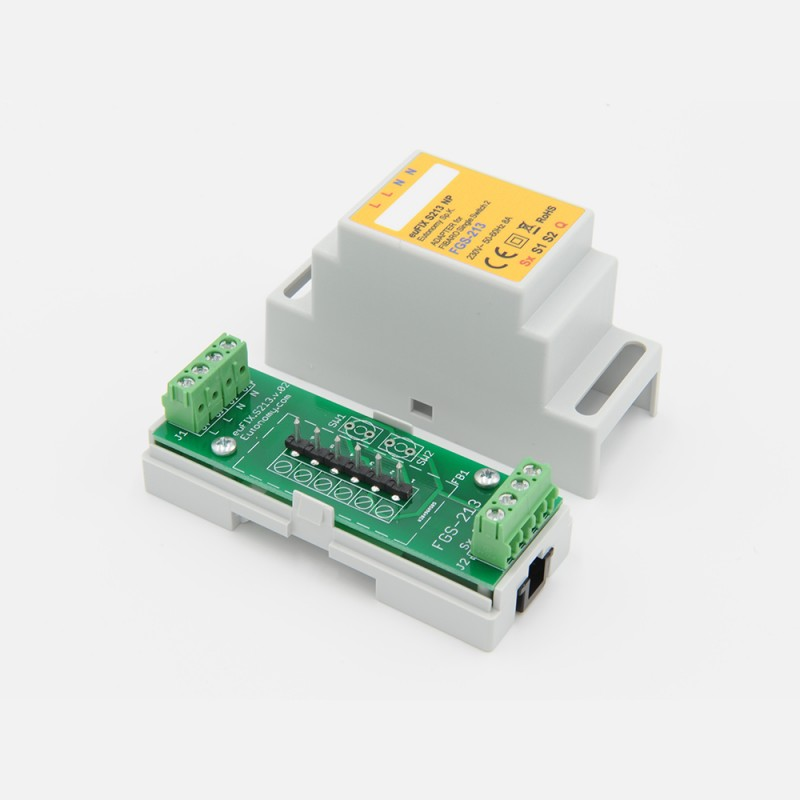

The adapter Eutonomy euFIX S213NP is used to install the module Fibaro® Switch FGS-213 on a rail of type DIN TH35 in the electrical panel.
The adapter Eutonomy euFIX S213NP consists of a housing and an electronic card on which the module Switch FGS-213 is mounted.
The dimensions of the case are appropriate for a standard rail DIN TH35/TS35.
The e-card contains a set of screw terminals, where all the wires (power, signal input and output, command buttons) can be connected safely.
Adapter DIN to Fibaro Switch FGS-213 without push buttons
Used to install the module Fibaro Switch FGS-213-rail type DIN-TH35 / TS35 in the electrical panel
Location free on the label to identify the line controlled
Supply voltage: 230 V AC +/- 10%, 50-60Hz
Power load: max 6.5 A per channel, 10A total
Dimensions: 34,8 x 87,3 x 64,7 mm
Width in units TE: 2 TE coolers
Cross Section of the conductor of wire : max. 2.5 mm2
Maximum length of the wires connected to the inputs Sx, S1, S2: 20m
Operating temperature: 0 ° C to +50 ° C
Relative humidity: ≤90%, no condensation
Guidelines:
LVD 2014/35 / EC
RoHS 2011/65 / EU
The FIBARO KeyFob FGKF-601 is a remote Z-Wave More .
The FIBARO KeyFob FGKF-601 equipped with 6 buttons to run various scenes and actions.
The FIBARO Button FGPB-101 allows you to control the devices from your Z-Wave network and perform various
scenes defined in the system FIBARO.
Red color.
The FIBARO Button FGPB-101 allows you to control the devices from your Z-Wave network and perform various
scenes defined in the system FIBARO.
Color white.
FIBARO FGD-212 dimmer module ZWAVE-PLUS.
This module home automation FIBARO FGD-212 Z-WAVE+ allows you to command a lighting circuit with dimming.
It can also connect to a intérrupteur existing.
Compatible with many software.
