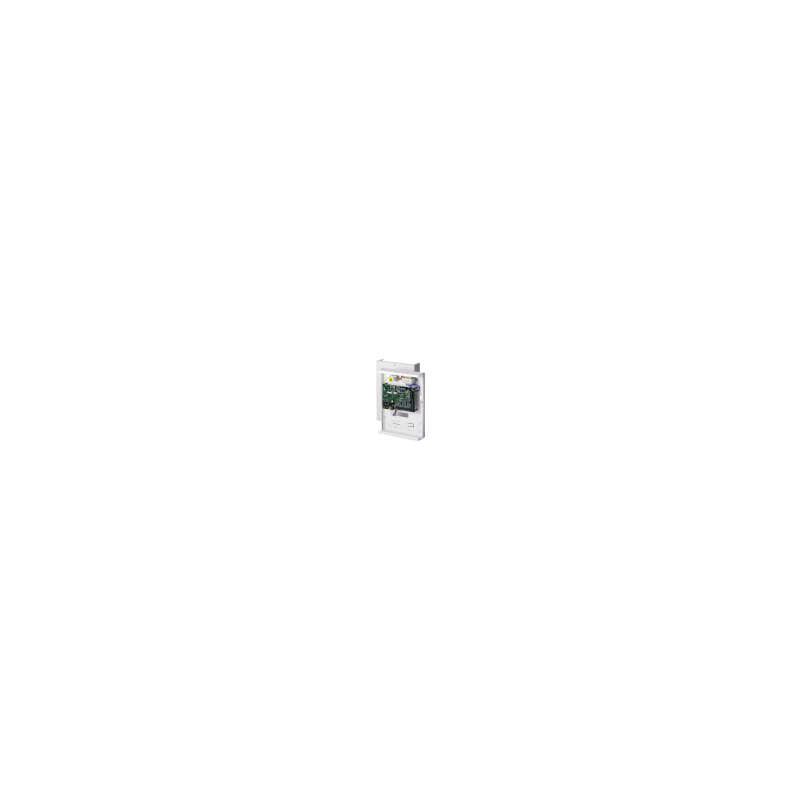

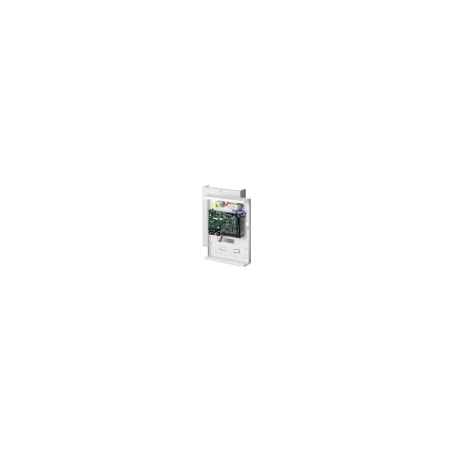

Vanderbilt - Central alarm 8/128 areas NFA2P areas with built-in WEB server

€720.25

VAT included

Central alarm Vanderbilt 8/128 areas NFA2P with built-in WEB server

This alarm is not dependent on any Cloud!

Quantity

Last items in stock

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Description
Product Details

Central alarm Vanderbilt 8/128 areas NFA2P with built-in WEB server

Anti-Intrusion system-native IP with embedded Web server NFA2P

Comes with documentation and programming software su CD-ROM.

The central SPC5320.320-L1 combines them into 1 single product features intrusion detection and access control.

It can be extended to 128 inputs (8 core)' 128 outputs (6)' 16 keyboards' 8 door controllers (16 doors) and 16 transponders.
The central has 2 interfaces X-Bus ( 2 branches or 1 loop)' 16 areas of oversight independent' of 500 users with different access levels.

It can receive 2 cards of transmission PSTN and/or GSM, and has 2 log of 10,000 events each for intrusion and access control.
The system can be extended via modules radio' and can handle up to 120 sensors radio SiWay and 50 remote controls.

It also integrates a WEB server and an IP interface native' to:

to transmit its alarms to the recipients IP
to provide a secure web access to the user via the internet (secure HTTPS), for daily usage via a PC, an iPhone or Android application
to provide a secure web access to the installer via the internet' for the setting and maintenance of the system.

This plant has premium audit function alarm audio and video via IP.

The central is delivered in a box, metal-protected opening that allows to insert 1 battery of 7Ah and 1 transponder card (SPCE652, SPCE452, SPCA210).
The configuration software, SPC Pro, as well as the whole set of manuals for installation and use are provided on a CD-ROM delivered with each central.

Features centarle alarm Vanderbilt SPC5320.320-L1 :

Firmware	V3.6.6
Areas of oversight	16
Maximum number of user codes	500
Remote controls	Up to 50
Panic buttons radio	Up to 128
Memory of events	10 000 events intrusion 10 000 access events
Language	Multi-language (English + 4 languages to choose from)
Number of inputs on the motherboard	8
Maximum number of entries wired	128
Maximum number of entries radio	120 (takes the place of entries wired)
Resistance end of line	Defaults to 2 x 4k7. 15 possible combinations
Maximum number of outputs	128
Number of relays on the motherboard	1 flash (30 Vdc / 1 A resistive load)
Number of open collectors on the motherboard	5 outputs programmable 2 preset siren for indoor and outdoor current ( 400mA max. per output on resistive load)
Number of doors managed	16 doors, inputs, or 8 doors for entry/exit
Number of card readers	Max. 16
Radio Module	In option (SPCW110)
Check box alarm	16 areas of verification of alarm with up to 4 IP cameras and 16 sound modules
Video	Up to 16 frames before and 16 images after the alarm (JPEG, 320x240, 1 image / sec. max.)
Audio	Up to 60 seconds before and 60 seconds after the alarm recording audio
Calendar	32 calendars (53 weeks, associated users, areas, inputs, outputs, keyboards, doors)
Macro Language	Controller that can handle 256 conditions, and control 128 processes (causes & effects)
Number of cards per bus	Max. 40 (16 keypads, 8 door controllers, 16 transponders)
Interfaces	2 X-BUS (2 branches or a loop), 2 RS232, 1 USB (PC connection) 1 Ethernet (RJ45)
Contact self-monitoring	Self-protection at the opening 2 inputs for external contact
Supply voltage main	230 Vac, + 10%/ -15%, 50 Hz
Intensity of operation	Max. 190 mA at 12 Vdc
Operating current optimal	Max. 170 mA at 12 Vdc
Output voltage	13-14 Vdc in normal operation (powered at 230V, and charged battery)
Auxiliary power (nominal)	Max. 750 mA at 12 Vdc
Battery Type	YUASA NP17-12FR (7 Ah), not included
Operating temperature	0 to +40 °C
Color	RAL 9003 (white)
Weight	4.500 kg
Dimensions (L x H x P)	264 x 357 x 81 mm
Key Box / Cabinet	Small box of metal (steel 1.2 mm)
Certification	EN50131-1 / EN50131-3 / EN50131-6, Grade 2, Class II EN: NF & A2P 2 shields CH: ITS IN CH Grade 2 UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2
