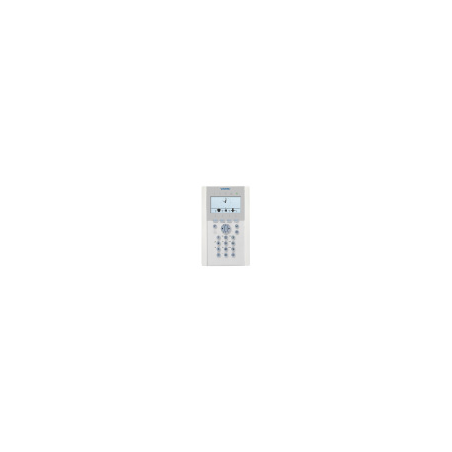

The keyboard comfort SPCK620 is ideal for a user-friendly interface and easy of a mono or multi-sectors.
The 4 softkeys and the navigation key allows a simple handling with a minimum of operation.
The large display allows a clear view and explicitly states and an optimal presentation of the various possible actions.
It is possible to customize the keyboard according to the customer needs: customization of the screen (customer logo clock...)' direct keys for emergency call' put in quick monitoring.
The features of this keyboard can be extended with the box key SPCE110 or case synoptic SPCE120.
|
LCD display |
128 x 64 pixels (approximately 6 x 20 characters) |
|
Specific keys |
4 function keys, 1 navigation key |
|
LED indicators |
5 status LEDs |
|
Interfaces |
X-Bus (Input / Output) |
|
Contact self-monitoring |
Self-protection at the opening |
|
Operating voltage |
9.5 ~ 14 Vdc |
|
Intensity of operation |
Max. 155 mA /12 Vdc (backlight' |
|
Operating current optimal |
Max. 55 mA at 12 Vdc |
|
Mounting |
Applied |
|
Operating temperature |
-5 ~ +40 °C |
|
Color |
RAL 9003 (white) |
|
Weight |
0.380 kg |
|
Dimensions (L x H x P) |
112 x 185 x 28 mm |
|
Key Box / Cabinet |
Case plastic (Polycarbonate) |
|
Certification |
EN50131-1 / EN50131-3, Grade 3, Class II |
